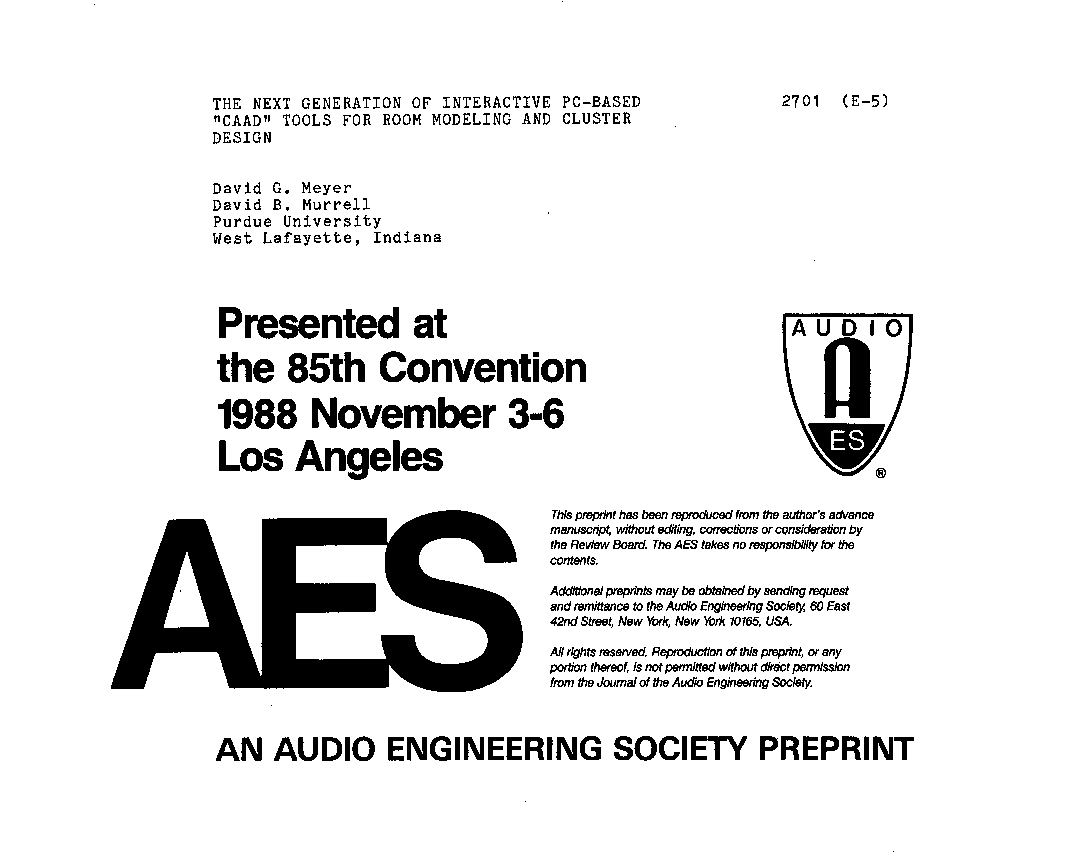

The Next Generation of Interactive PC-Based "CAAD" Tools for Room Modeling and Cluster Design

Meyer DG, Murrell DB. The Next Generation of Interactive PC-Based "CAAD" Tools for Room Modeling and Cluster Design. In: AES Convention 85. Audio Engineering Society; 1988. Paper 2701. Available from: https://aes.org/publications/elibrary-page/?id=4743

@inproceedings{Meyer1988_4743,
  author = {Meyer, David G. and Murrell, David B.},
  title = {{The Next Generation of Interactive PC-Based "CAAD" Tools for Room Modeling and Cluster Design}},
  booktitle = {AES Convention 85},
  note = {Paper 2701},
  year = {1988},
  month = nov,
  publisher = {Audio Engineering Society},
  url = {https://aes.org/publications/elibrary-page/?id=4743}
}

TY  - CPAPER
TI  - The Next Generation of Interactive PC-Based "CAAD" Tools for Room Modeling and Cluster Design
AU  - Meyer, David G.
AU  - Murrell, David B.
T2  - AES Convention 85
M1  - Paper 2701
PY  - 1988
DA  - 1988/11/06
UR  - https://aes.org/publications/elibrary-page/?id=4743
PB  - Audio Engineering Society
LA  - en
AB  - This paper describes a set of design goals for the next generation of PC-based Computer-Aided Acoustic Design (CAAD) tools, given the capabilities of currently available 32-bit microprocessors, floating point coprocessors, graphics coprocessors, and near future advances in memory/mass storage systems. The CAAD tool described would allow a system designer to view a three-dimensional, animated, color-coded display while interactively adjusting parameters such as driver type, orientation, third-octave-band signal equalization, and signal delay. Various features include a three-dimensional display viewed from an arbitrarily shaped auditoria, with interactive editing of auditorium shape/dimensions; an interactive array/cluster editor to create arrays of arbitrary configuration (element type, location, and orientation); incorporation of a high resolution (two degree interval between data points) database for each potential driver, with a single optical disk used to contain an entire library of driver types; calculation of the sound field at any arbitrary surface in the acoustic space (e.g., ear plane, side wall, etc.); a swept frequency animation of the projected sound field on an arbitrarily selected surface; a time domain animation of early and late arrivals on an arbitrarily selected surface; and a display of delay differential isobars on an arbitrarily selected surface. A PC-based CAAD tool based on these design criteria is currently under development.
ER  -
