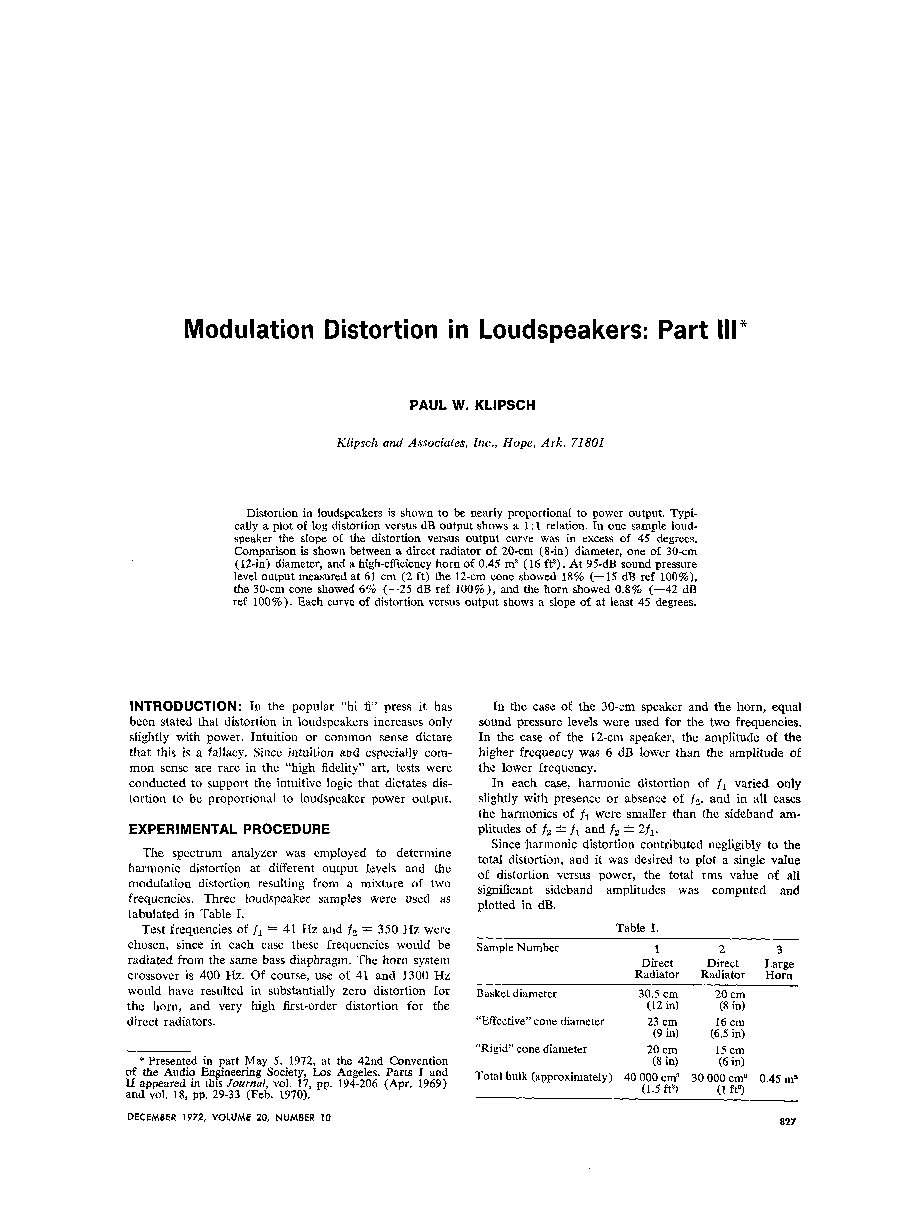

Modulation Distortion in Loudspeakers: Part 3

Klipsch PW. Modulation Distortion in Loudspeakers: Part 3. J Audio Eng Soc. 1972;20(10):827-828. Available from: https://aes.org/publications/elibrary-page/?id=2018

@article{Klipsch1972_2018,
  author = {Klipsch, Paul W.},
  title = {{Modulation Distortion in Loudspeakers: Part 3}},
  journal = {Journal of the Audio Engineering Society},
  volume = {20},
  number = {10},
  pages = {827--828},
  year = {1972},
  month = dec,
  publisher = {Audio Engineering Society},
  url = {https://aes.org/publications/elibrary-page/?id=2018}
}

TY  - JOUR
TI  - Modulation Distortion in Loudspeakers: Part 3
AU  - Klipsch, Paul W.
T2  - Journal of the Audio Engineering Society
J2  - J. Audio Eng. Soc.
VL  - 20
IS  - 10
SP  - 827
EP  - 828
PY  - 1972
DA  - 1972/12/06
UR  - https://aes.org/publications/elibrary-page/?id=2018
PB  - Audio Engineering Society
LA  - en
AB  - Distortion in loudspeakers is shown to be nearly proportional to power output. Typically a plot of log distortion versus dB output shows a 1:1 relation. In one sample ooudspeaker the slope of the distortion versus output curve was in excess of 45 degrees. Comparison is shown between a direct radiator of 20-cm (8-in) diameter, one of 30-cm (12-in) diameter, and a high-efficiencØ horn of 0.45 m/3 (16 ft/3). At 95-dB sound pressure level output measured at 61 cm (2 ft) the 12-cm cone showed 18% (-15 dB ref 100%), the 30-cm cone showed 6% (-25 dB ref 100%), and the horn showed 0.8% (-42 dB ref 100%). Each curve of distortion versus output shows a slope of at least 45 degrees.
ER  -
