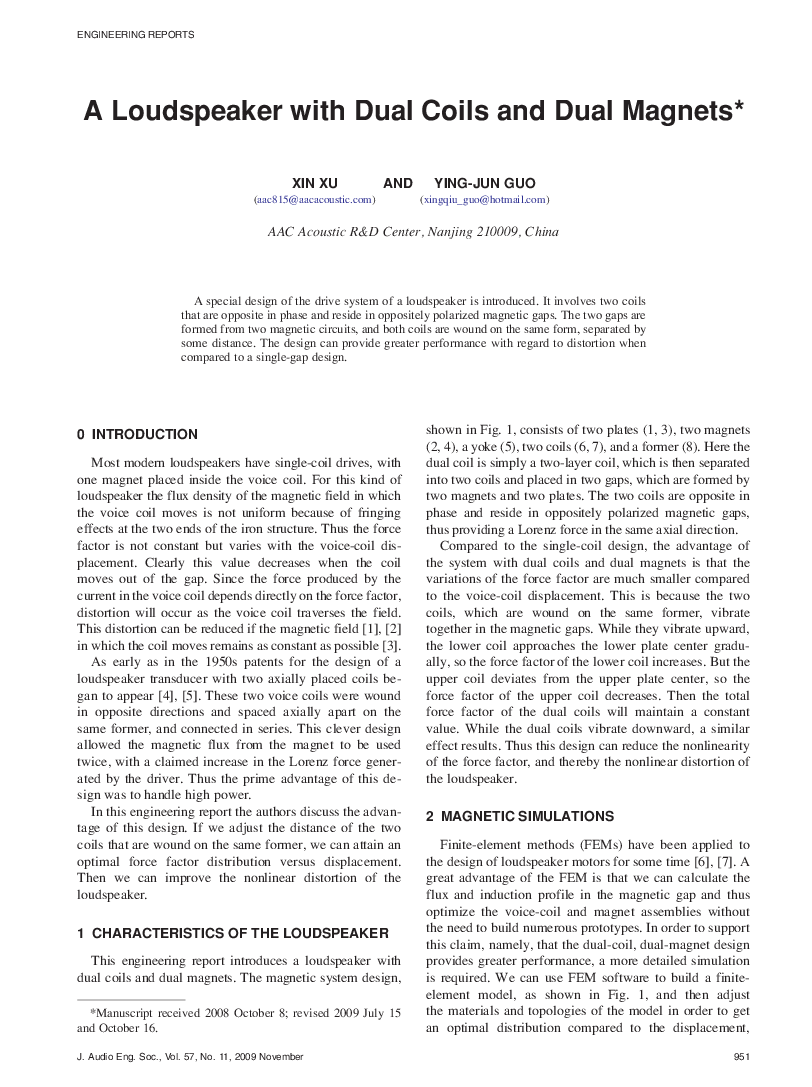

A Loudspeaker with Dual Coils and Dual Magnetics

Xu X, Guo YJ. A Loudspeaker with Dual Coils and Dual Magnetics. J Audio Eng Soc. 2009;57(11):951-956. Available from: https://aes.org/publications/elibrary-page/?id=15231

@article{Xu2009_15231,
  author = {Xu, Xin and Guo, Ying-jun},
  title = {{A Loudspeaker with Dual Coils and Dual Magnetics}},
  journal = {Journal of the Audio Engineering Society},
  volume = {57},
  number = {11},
  pages = {951--956},
  year = {2009},
  month = nov,
  publisher = {Audio Engineering Society},
  url = {https://aes.org/publications/elibrary-page/?id=15231}
}

TY  - JOUR
TI  - A Loudspeaker with Dual Coils and Dual Magnetics
AU  - Xu, Xin
AU  - Guo, Ying-jun
T2  - Journal of the Audio Engineering Society
J2  - J. Audio Eng. Soc.
VL  - 57
IS  - 11
SP  - 951
EP  - 956
PY  - 2009
DA  - 2009/11/06
UR  - https://aes.org/publications/elibrary-page/?id=15231
PB  - Audio Engineering Society
LA  - en
AB  - By using dual coils and dual magnetic gaps in the drive system of a loudspeaker, the electromagnetic force can be made constant even with large displacement from the resting state. Dual-drive techniques were used in 1950 in order to increase the total power but not to improve linearity. This older technique can be used to lower distortion. In order to confirm the results of the mathematical simulation, specially constructed loudspeakers were tested. Distortion was significantly reduced. The advantages of this approach need to be balanced against higher manufacturing cost.
ER  -
