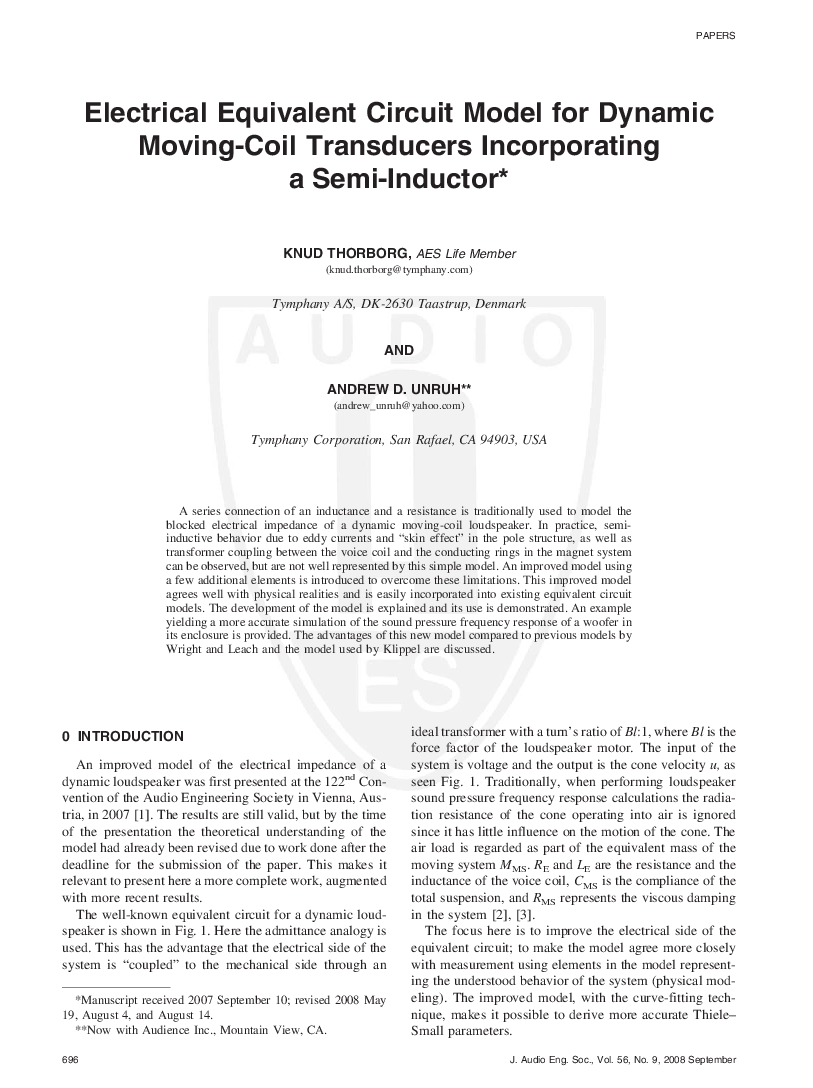

Electrical Equivalent Circuit Model for Dynamic Moving-Coil Transducers Incorporating a Semi-Inductor

Thorborg K, Unruh AD. Electrical Equivalent Circuit Model for Dynamic Moving-Coil Transducers Incorporating a Semi-Inductor. J Audio Eng Soc. 2008;56(9):696-709. Available from: https://aes.org/publications/elibrary-page/?id=14633

@article{Thorborg2008_14633,
  author = {Thorborg, Knud and Unruh, Andrew D.},
  title = {{Electrical Equivalent Circuit Model for Dynamic Moving-Coil Transducers Incorporating a Semi-Inductor}},
  journal = {Journal of the Audio Engineering Society},
  volume = {56},
  number = {9},
  pages = {696--709},
  year = {2008},
  month = sep,
  publisher = {Audio Engineering Society},
  url = {https://aes.org/publications/elibrary-page/?id=14633}
}

TY  - JOUR
TI  - Electrical Equivalent Circuit Model for Dynamic Moving-Coil Transducers Incorporating a Semi-Inductor
AU  - Thorborg, Knud
AU  - Unruh, Andrew D.
T2  - Journal of the Audio Engineering Society
J2  - J. Audio Eng. Soc.
VL  - 56
IS  - 9
SP  - 696
EP  - 709
PY  - 2008
DA  - 2008/09/06
UR  - https://aes.org/publications/elibrary-page/?id=14633
PB  - Audio Engineering Society
LA  - en
AB  - The conventional model of a dynamic moving-coil loudspeaker is improved by incorporating a semi-inductor that results from eddy currents and skin effect in the pole pieces. Highly conductive metals such as aluminum, copper, or silver concentric to the voice coil can be treated as a one-turn secondary in a transformer with the primary of the voice coil. This new model produces more accuracy, as illustrated in a simulation of sound pressure frequency response of a woofer in an enclosure. The model is relevant to all electrodynamic transducers.
ER  -
