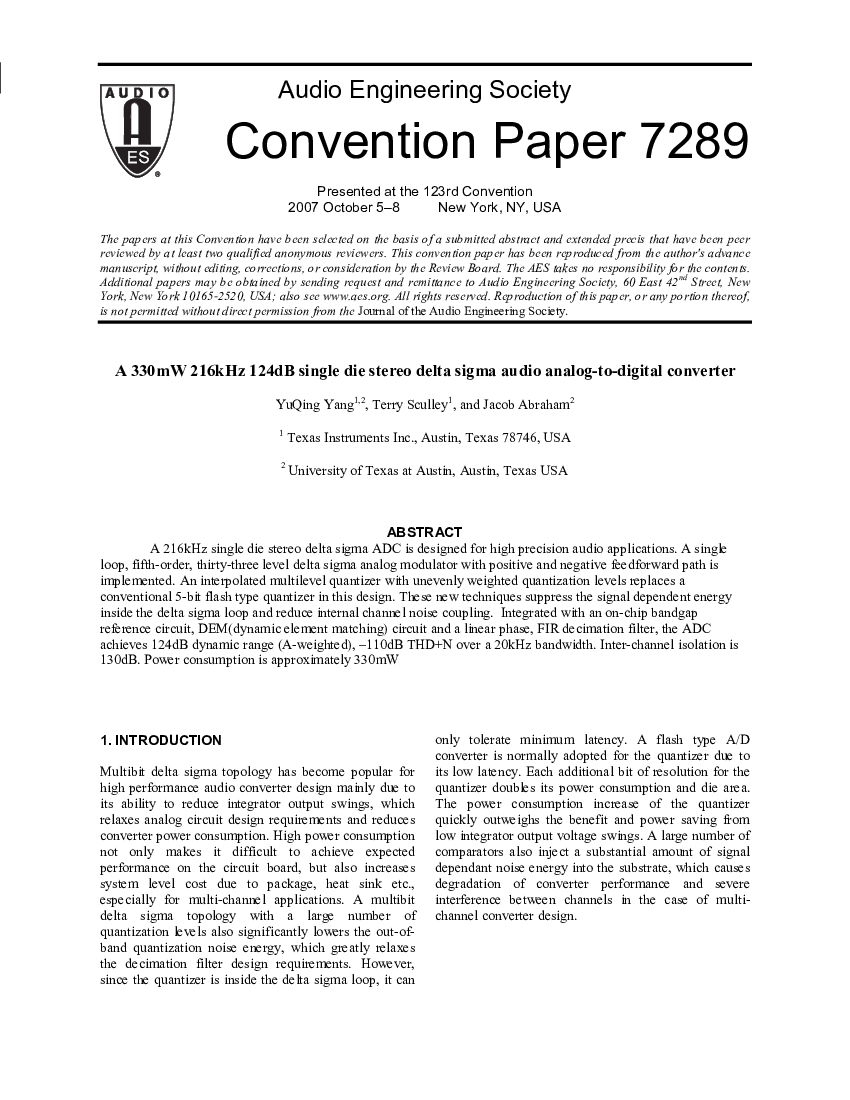

A 216 kHz 124 dB Single Die Stereo Delta Sigma Audio Analog-to-Digital Converter

Yang Y, Sculley T, Abraham J. A 216 kHz 124 dB Single Die Stereo Delta Sigma Audio Analog-to-Digital Converter. In: AES Convention 123. Audio Engineering Society; 2007. Paper 7289. Available from: https://aes.org/publications/elibrary-page/?id=14346

@inproceedings{Yang2007_14346,
  author = {Yang, YuQing and Sculley, Terry and Abraham, Jacob},
  title = {{A 216 kHz 124 dB Single Die Stereo Delta Sigma Audio Analog-to-Digital Converter}},
  booktitle = {AES Convention 123},
  note = {Paper 7289},
  year = {2007},
  month = oct,
  publisher = {Audio Engineering Society},
  url = {https://aes.org/publications/elibrary-page/?id=14346}
}

TY  - CPAPER
TI  - A 216 kHz 124 dB Single Die Stereo Delta Sigma Audio Analog-to-Digital Converter
AU  - Yang, YuQing
AU  - Sculley, Terry
AU  - Abraham, Jacob
T2  - AES Convention 123
M1  - Paper 7289
PY  - 2007
DA  - 2007/10/06
UR  - https://aes.org/publications/elibrary-page/?id=14346
PB  - Audio Engineering Society
LA  - en
AB  - A 216kHz single die stereo delta sigma ADC is designed for high precision audio applications. A single loop, fifth-order, thirty-three level delta sigma analog modulator with positive and negative feedforward path is implemented. An interpolated multilevel quantizer with unevenly weighted quantization levels replaces a conventional 5-bit flash type quantizer in this design. These new techniques suppress the signal dependent energy inside the delta sigma loop and reduce internal channel noise coupling. Integrated with an on-chip bandgap reference circuit, DEM(dynamic element matching) circuit and a linear phase, FIR decimation filter, the ADC achieves 124dB dynamic range (A-weighted), –110dB THD+N over a 20kHz bandwidth. Inter-channel isolation is 130dB. Power consumption is approximately 330mW
ER  -
